| Parameter | Specification |
|---|---|
| Sensor Type | PT100 / PT1000 Optional |
| Sensor Accuracy | Class A / Class B / 3/1B Optional |
| Probe Material | 304 Food-Grade Stainless Steel |
| Probe Diameter | 3 mm / 4 mm / 5 mm Optional |
| Probe Length | 100 mm / 150 mm / 200 mm, Customizable |
| Handle Material | PEEK / Metal, Customizable |
| Lead Wire | 2-Wire / 3-Wire / 4-Wire |
| Cable Type | High-Temperature Shielded Cable |
| Cable Length | 1 m / 2 m / 3 m, Customizable |
| Temperature Range | -50°C to +350°C |
| Customization | Probe Size, Cable Length, Wiring, Connector, Handle and Structure |
| OEM / ODM Service | Available |

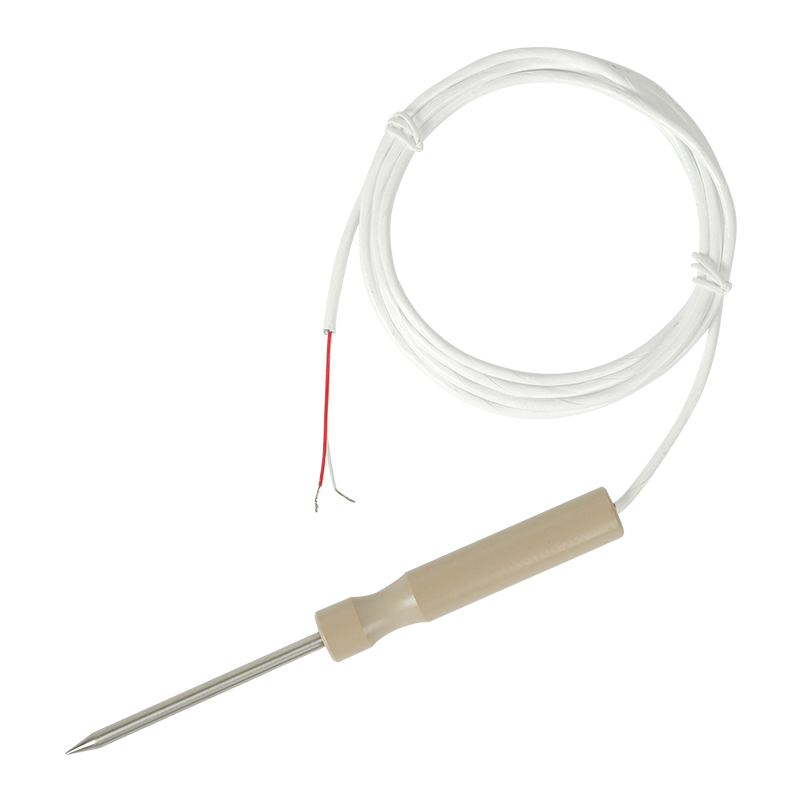

The PT1000 RTD Probe is a high-performance resistance temperature sensor designed for accurate, stable, and reliable temperature measurement in industrial, commercial, laboratory, and food-related applications. Featuring a precision platinum resistance element, this PT1000 RTD sensor provides consistent temperature readings and excellent long-term stability for applications that require dependable thermal monitoring.
Based on platinum resistance temperature measurement technology, the sensor converts temperature changes into predictable resistance variations. This makes it suitable for temperature control, process monitoring, automation systems, instrumentation, and other applications where accurate temperature feedback is essential.
The probe is manufactured from durable 304 food-grade stainless steel, providing good corrosion resistance, heat resistance, mechanical strength, and easy cleaning. Depending on the selected configuration, the sensor can be integrated into food processing equipment, cooking thermometers, BBQ monitoring systems, HVAC equipment, laboratory instruments, refrigeration systems, and industrial machinery.
With a standard temperature range of -50°C to +350°C, multiple probe diameters, probe lengths, wiring configurations, and cable options are available. Custom designs can also be developed according to installation requirements, making this industrial PT1000 probe suitable for OEM and ODM applications.
The precision platinum resistance element provides stable and repeatable temperature measurement. The PT1000 configuration offers a higher nominal resistance than PT100, which can provide stronger signal sensitivity and make it suitable for various monitoring and control systems.
As a platinum resistance temperature sensor, the probe uses the predictable resistance characteristics of platinum to measure temperature. This enables reliable temperature feedback for industrial process control, instrumentation, food processing, and laboratory applications.
The probe is constructed from 304 food-grade stainless steel, providing good corrosion resistance, durability, and easy cleaning. This material makes the sensor suitable for food processing, cooking, BBQ, beverage production, and other applications where durable and hygienic materials are required.
The standard operating range is -50°C to +350°C, allowing the probe to monitor temperature in heating, cooling, cooking, refrigeration, and industrial process environments.
2-wire, 3-wire, and 4-wire configurations are available for different measurement and connection requirements. The wiring configuration can be selected according to the controller, measuring instrument, and required measurement accuracy.
The probe uses high-temperature shielded cable to support reliable signal transmission in demanding working environments. Cable length can also be customized according to the installation distance and equipment structure.
Probe diameters of 3 mm, 4 mm, and 5 mm are available, with standard lengths of 100 mm, 150 mm, and 200 mm. Customized dimensions can be supplied for different equipment and installation requirements.
The PT1000 RTD sensing element provides stable resistance characteristics and repeatable temperature readings. This helps equipment manufacturers and system integrators achieve reliable temperature monitoring and more consistent process control.
Platinum resistance sensing technology combined with durable stainless steel construction enables reliable performance during continuous operation. This makes the probe suitable for equipment that requires stable temperature monitoring over extended periods.
The 304 stainless steel probe provides good mechanical strength and resistance to corrosion and heat. The robust construction helps the sensor perform reliably in industrial, commercial, and food-processing environments.
Multiple wiring configurations, probe sizes, cable lengths, and handle options make the sensor easy to integrate into different monitoring systems. It can be connected to temperature controllers, digital thermometers, PLC systems, data acquisition equipment, and industrial instruments.
The combination of food-grade stainless steel and precision RTD technology allows the probe to serve both food temperature monitoring and industrial measurement applications. It can be used as a BBQ temperature probe, food thermometer component, or industrial temperature sensor.
We provide customized PT1000 RTD probe solutions for equipment manufacturers, distributors, system integrators, and industrial brands. Probe diameter, length, cable length, wiring configuration, handle material, connector, and other specifications can be customized according to project requirements.
This industrial PT1000 probe can be used in a wide range of temperature measurement and control applications.
Industrial automation equipment
Process control systems
Temperature control equipment
Industrial machinery
HVAC systems
Refrigeration equipment
Thermal monitoring systems
Instrumentation and measurement equipment
Food processing equipment
BBQ thermometers
BBQ grills
Cooking thermometers
Commercial kitchens
Brewing equipment
Beverage production equipment
Food temperature monitoring systems
Laboratory instruments
Temperature testing equipment
Medical instruments
Environmental monitoring systems
Research equipment
Temperature data acquisition systems
Because of its flexible configuration, the sensor can be used as a BBQ temperature probe, food temperature monitoring component, laboratory temperature sensor, or industrial RTD sensor according to the selected specification.
Both PT100 and PT1000 are platinum resistance temperature sensors, but their nominal resistance values are different. A PT100 sensor has a nominal resistance of 100 ohms at 0°C, while a PT1000 sensor has a nominal resistance of 1000 ohms at 0°C.
| Feature | PT100 | PT1000 |
|---|---|---|
| Nominal Resistance at 0°C | 100 Ω | 1000 Ω |
| Sensor Technology | Platinum RTD | Platinum RTD |
| Temperature Measurement | Resistance-Based | Resistance-Based |
| Signal Sensitivity | Standard | Higher Nominal Resistance |
| Typical Applications | Industrial Measurement and Control | Industrial, Commercial and Precision Temperature Monitoring |
The appropriate sensor depends on the controller, wiring configuration, measurement system, and application requirements. PT1000 is often selected when higher nominal resistance and signal sensitivity are beneficial for the system design.
Different equipment and installation environments require different sensor structures. We offer flexible customization services for customers who need a custom PT1000 sensor.
Available customization options include:
PT100 or PT1000 sensing element
Class A, Class B, or other accuracy requirements
Probe diameter
Probe length
2-wire, 3-wire, or 4-wire configuration
Cable length
High-temperature cable type
Handle material
Connector type
Installation structure
Product labeling and packaging
Customers can provide drawings, samples, technical specifications, installation dimensions, or application details. Our engineering team can evaluate the requirements and recommend a suitable RTD probe configuration.
We provide OEM and ODM manufacturing services for customers sourcing PT1000 RTD sensors and platinum resistance temperature probes. Our solutions are suitable for equipment manufacturers, industrial automation companies, food equipment suppliers, distributors, laboratory equipment manufacturers, and system integrators.
For bulk orders and long-term projects, customized specifications can be maintained across production batches to support consistent equipment assembly and product quality. From standard RTD probes to application-specific temperature sensors, we provide flexible manufacturing solutions based on customer requirements.
PT1000 Platinum Resistance Technology: Provides stable and repeatable temperature measurement.
PT100 Option: PT100 and PT1000 sensing elements can be selected according to system requirements.
304 Stainless Steel: Durable, corrosion-resistant, and suitable for food-related applications.
Wide Temperature Range: Standard operating range from -50°C to +350°C.
Multiple Wiring Options: 2-wire, 3-wire, and 4-wire configurations are available.
Flexible Dimensions: Multiple probe diameters and lengths can be customized.
OEM & ODM Support: Suitable for customized equipment and bulk manufacturing projects.
Wide Application Range: Suitable for industrial automation, food processing, laboratories, HVAC, refrigeration, and instrumentation.
The main difference is the nominal resistance at 0°C. A PT100 has a nominal resistance of 100 ohms, while a PT1000 has a nominal resistance of 1000 ohms. Both use platinum resistance technology to measure temperature.
A PT1000 provides a higher nominal resistance than a PT100, which can provide stronger signal sensitivity and may reduce the relative influence of lead resistance in certain system configurations. The final choice should be based on the controller and measurement system.
The standard operating temperature range is -50°C to +350°C. Customized temperature ranges may be available depending on the sensor construction, cable, and application requirements.
Yes. The probe uses 304 food-grade stainless steel and can be used for food processing, cooking, BBQ temperature monitoring, brewing, beverage production, and other food-related applications.
Yes. The sensor can be integrated into BBQ thermometers, grills, smokers, cooking equipment, and food temperature monitoring systems, depending on the final configuration.
The stainless steel probe can be designed with a sealed structure for improved resistance to moisture and wet environments. The actual waterproof performance depends on the final construction, cable sealing, connector, and installation method.
Yes. Probe diameter and length can be customized. Standard diameter options include 3 mm, 4 mm, and 5 mm, while standard lengths include 100 mm, 150 mm, and 200 mm.
Yes. The sensor can be supplied in 2-wire, 3-wire, or 4-wire configurations according to the requirements of the temperature controller or measurement system.
Yes. Cable length, cable type, handle material, and other structural specifications can be customized. PEEK and metal handle options are available depending on the application.
Yes. We provide OEM and ODM services for PT1000 RTD probes and platinum resistance temperature sensors. Customization can include sensing element, probe dimensions, wiring, cable, handle, connector, packaging, and branding.
If you are looking for a reliable PT1000 RTD probe manufacturer or supplier, we can provide standard and customized temperature sensing solutions for industrial, food, commercial, laboratory, and automation applications.
Send us your required sensor type, probe diameter, probe length, temperature range, wiring configuration, cable length, handle material, application environment, and order quantity. Our team can recommend a suitable configuration and provide an OEM or ODM solution for your project.
